Notice:
1. The software CD is easily damaged during transportation. If it is unreadable or damaged, please contact us and we will send the download link. If the CD contains old software, please contact us to send the latest software link.
2. If you have any problem, please feel free to contact us first, we will try best to solve for you.
3. Do not update online. Otherwise the unit will be damaged.
4. It has only 20% function compared with original carprog. Please consider twice before order.
5. Software doesn't all activated, some function shows N/A MEANS can not use.
6. CARPROG only works well for Airbag Funtion (good at airbag reseting), other function is not good (it is not good at mileage and EEPROM ECU )

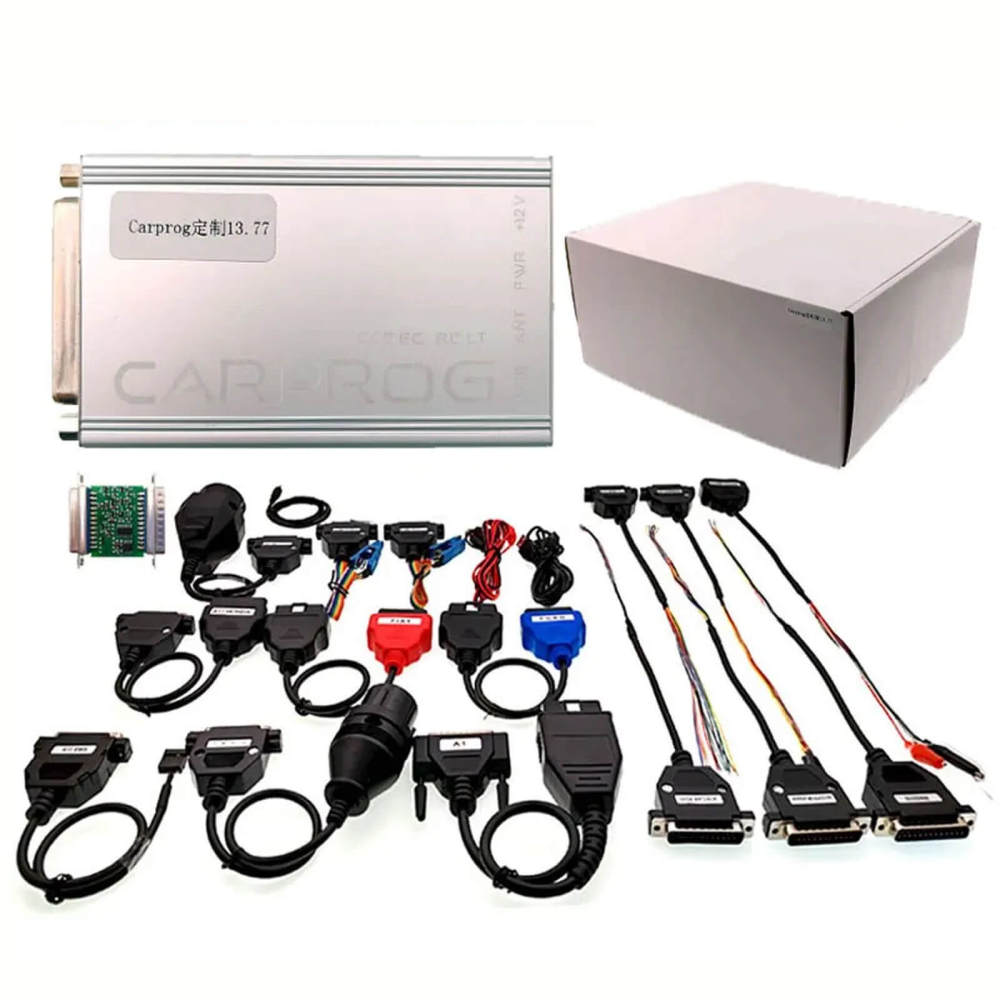

LESTEST Carprog Full V13.77 Adapter Programmer Airbag IMMO Repair Tool with Keygen Online
CARPROG FULL (with all 21 items Adapters), It designed with regard to demands of our customers to have universal tool for car radios, , dashboards, immobilizers repair including advanced functions like EEPROM and microcontroller programmer, key transponder programmer.

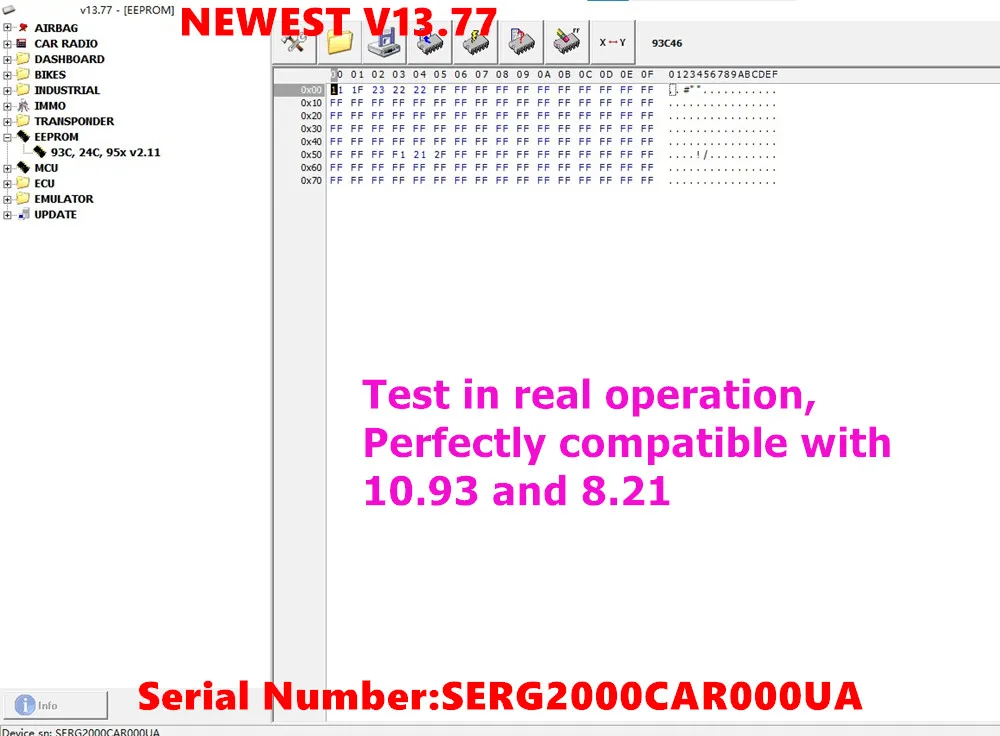

CARPROG V13.77 it is compatible with 10.93 and 8.21.
With the hardware/software version V13.77, no need send back ID to activate.
the serial number is different:
V10.93, serial number: 081105CAR001773I
V8.21, serial number: 150428CAR00542UA
V13.77, serial number: SERG2000CAR000UA
What is the difference between CARPROG Firmware V8.21 Online Version and CARPROG V10.93?
1.CARPROGV8.21 Online version all software can activate and online version. CARPROG V10.93 only some software activated ,many function can does not work.
2.CARPROG V8.21 supports Online programming.CARPROG V10.93 need disconnect internet
3.CARPROGV8.21 Support WINDOWS XP, WIN7, WIN8, WIN10 Operation system. CARPROG V10.93 only woks win xp only.
Description:
Carprog V8.21 Online Version Firmwarewith Full set 21 Adapters, contain much more authorization than other CARPROG.
Carprog V8.21 is authorized more cars so that it support the most vehicle models.
Carprog V8.21 is the best option for the most vehicle coverage and online use
CARPROG V8.21 Full Perfect Online Version Highlights:
1.Firmware V8.21,Software V10.93
2. SupportWINDOWS XP, WIN7, WIN8, WIN10 Operation system.
3. Can perform airbag reset function well
4. Support new for audi dash, support newer airbags
5. Including much more authorization
Note: can not do 95XXX and 24XXX chip well, please know this.
Functions:
1. Universal tool
CARPROG has powerful 16bit MPU and a full set of automotive interface drivers. In basic version you will get hardware with extra functions: 12 input/output pins for EEPROM in-circuit programmer, future possibility's to make on the same hardware Microcontroller programmer, K-line diagnostic, CAN line diagnostic,+5V/+12V output, USB, power supply only from USB.
2. The Low Cost tool
with CARPROG basic you will receive many extra functions (like car radio code calculator CC1, EEPROM programmer and VAG dashboard's programmer by CAN) .
3. User Friendly
Works without any installations, on all PC, use USB to PC link, all adapters schematics diagrams on-line.
4. The best function of it is airbag reset, and it cannot do by antenna.
Function list:
1.Airbag Reset (Best)
2. Dashboard
3. Immobilizer
4. Transponder
5. EEPROM
6. MCU
7. ECU Chip Tuning
8. Car Radio
Full Software:
ECU-OPEL - for OPEL login reader from motor hybrid ECU. Works with Bosch ME1.5.5, Siemens SIMTEC71, SIMTEC71.1, Delco Diesel, Delco Multec.
OPEL CAN - for Opel ECU by CAN programmer - read/mileage in EDC16, MT35E, HSFI 2.2 read PIN, reset ECU
PSG16 - for Opel PSG16 diesel pump by OBDII - read/mileage, read PIN, reset ECU
OPEC28 - for Opel Siemens Simtec ECU Tool Advanced
CarProg Full Dash:
S7.1 - for VAG CAN programmer
S7.2 - CarProg Dashboard programming
S7.3 - CarProg Dashboard programming package update
S7.4 - for Mercedes for Benz ASSYST explorer
S7.5- VDO dash decrypt tool - for Skoda Roomster, SuperB, for VW Polo, for Audi A3, A6, Allroad with 93C86 odometer and PIN reading
S7.6 - for Ford odometer by OBDII (by CAN)
S7.7 - for VW 2007+ by OBD - Golf, Passat, Eos, Touran, Tiguan, Octavia with Micronas by diagnostic
S7.8 - for VAG VDO dashboards by K-line OBDII diagnostic - for VW T5, for Passat B5, for Skoda SuperB and others
2J74Y for AUDI - for Audi 2J74Y repair software for CarProg
CarProg Full Immo:
S4.1 – TIS Key Programmer
S4.2 - For Lexu key programmer
S4.3 - For Daihatsu Key Programmer
S4.4 - CarProg BM Key programmer
S4.5 - for MB Key programmer
S4.6 - For RENAULT Megane/Scenic infrared key programmer
S4.7 - Kessy tool - A8, Touareg, Phaeton, Cayenne PIN code reader
CarProg Full Processor:
S2.1 - CARPROG for Motorola (Freescale) HC05 MPU programmer
S2.2 - CARPROG for Motorola (Freescale) HC11 MPU programmer
S2.3 - CARPROG for Motorola (Freescale) HC08 MPU programmer
S2.4 - CARPROG for Motorola (Freescale) 912 and 9S12 MPU
CarProg Full Programmer:
ST92 - ST92F120, ST92F150, ST92F250 internal EEPROM programmer
CarProg Full Radio Code:
S6.1 - CARPROG CC1
S6.2 - CARPROG CC2
S6.3 - CARPROG CCN
S6.4 - Philips Car Radio decoder
S6.5 - for Renault Car Radio decoder by serial number
S6.6 - for Audi/VW/Seat/Skoda car radio decoding software
RNS510 - Navigation decoding tool by Navi diagnostic
Carprog Full Airbag:
S5.1 - for VAG (Audi,VW, Skoda, Seat) Airbag Reset Tool
S5.2 - for BMW Airbag Reset Tool
S5.3 - for Mercedes for Benz Airbag Reset Tool
S5.4 - for FORD Airbag Reset Tool
S5.5 - for GM Airbag Reset Tool by OBDII
S5.6 - CARPROG CR16 Airbag tool - Audi, Mercedes, Ford, Volvo
S5.7 - for Renault Airbag reset tool
S5.8 - for Peugeot Airbag Reset tool
S5.9 - for Citroen Airbag Reset tool
S5.10 - for Honda Airbag Reset tool
S5.11 - for Audi Airbag reset tool by direct connection to EEPROM or MPU
S5.14 - for Ford Airbag Reset tool by direct connection to EEPROM or MPU
S5.16 - for Hyundai Airbag Reset tool
S5.17 - for KIA Airbag Reset tool
S5.18 - for Lexus Airbag Reset tool
S5.19 - for Rover Airbag Reset tool
S5.21 - for Mazda Airbag Reset tool
S5.22 - for Mitsubishi airbag reset tool
S5.23 - for Nissan Airbag reset tool
S5.20 - for Mercedes for Benz Airbag Reset tool by direct connection
S5.25 - for Opel Airbag reset tool by direct connection
S5.27 - for Saab Airbag reset tool by direct connection
S5.28 - for Subaru Airbag reset tool by direct connection
S5.30 - for Toyota Airbag reset tool by direct connection
S5.31 - for Alfa Romeo Airbag Reset Tool
S5.32 - for Fiat Airbag Reset Tool
S5.33 - for Porsche Airbag Reset Tool
S5.34 - for Suzuki Airbag Reset Tool
S5.35 - for Volvo Airbag Reset Tool
S5.36 - for Daewoo Airbag Reset Tool
Carprog Full Customers Feedback:
Focus 2008 ….ok
Cmax 2010 ….ok
opel many ecu(bensin and diesel) ….ok
Fiat croma, punto, bravo…ok
Passat b6 2007….ok
hyundai i20 2014 obd………..ok
for skoda fabia clear airbag by 3 wires ok
astra IV , insignia , octavia 2011 JC online work
Carprog v8.21 and v8.09 online test Report – Fail:
Insignia, Astra 2010 …. Error connection
Polo 2014 read dash –fail
Octavia —-2007 read immodata fail
clio3 2006 dash with 24c04 always change to 137000 0r 131000km can’t remember by obd..

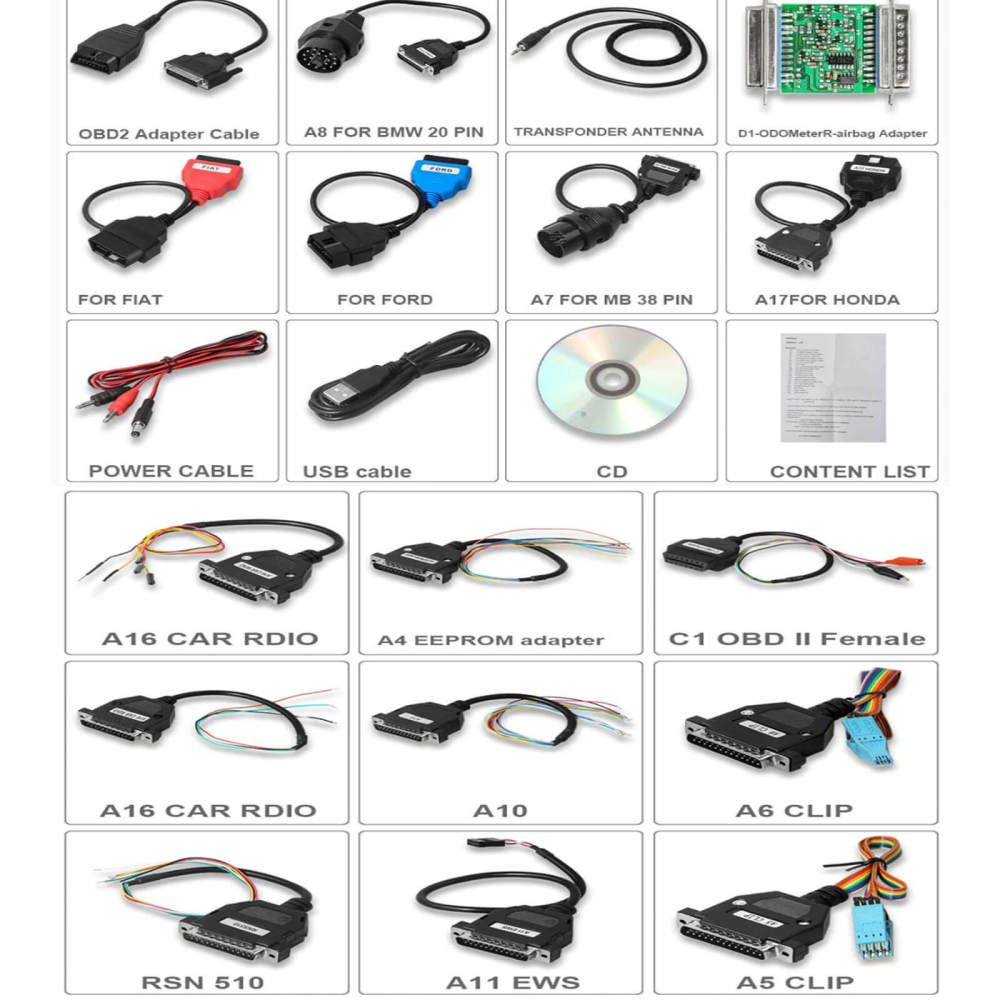

Packing list:
1pc x CarProg Main unit
1pc x A1 - OBD2 Adapter Cable (Inside have K-line and CAN bus switches. Use with all cars complained with OBDII standard)
1pc x D1 - Odometer-airbag Adapter (Dashboard, Airbag programming adapter )
1pc x A3 - Transponder Antenna (Used with all CARPROG immobiliser software)
1pc x A10 - Motorola Adapter Cable (M-otorola MCU programming adapter)
1pc x A11 - BMW EWS Adapter Cable (Used for BMW Immo software)
1pc x A16 - Car radio Cable (Used for Opel, Renault, Peugeot, Citroen car radio made by for Philips decoding)
1pc x A15 - Cable (Used with D1 adapter, Universal car dashboard and airbag programming adapter )
1pc x A17 - Honda Airbag OBD2 Cable (Adapter for Honda airbag reset by OBDII )
1pc x A4 - Eeprom Adapter Cable (Used for eeprom programming)
1pc x A5 - DIP8 Clip Cable (DIP8 Clip for eeprom programming)
1pc x A6 - SOIC8 Clip Cable (SOIC8 Clip for eeprom programming)
1pc x A7 - MB 38-Pin Cable (Used with MB Airbag and dashboard software)
1pc x A8 - BMW 20-Pin Cable (Used for BMW airbag and dashboard software )
1pc x RNS510 Adapter Cable (RNS510 radio decoding interface cable )
1pc x VOLVO/FORD CAN 2006+ Cable (Needed for airbag and dashboard programming)
1pc x FIAT CAN 2006 Cable (Needed for airbag and dashboard programming)
1pc x C1 OBD2 Female Cable
1pc x USB Cable
1pc x Power cable
1pc x CD
